Piston Position for TDC

Hi Guys

I have a 2006 NP pajero with a 3.8L engine

Timing belt snapped off

Taken the heads off for a rebuild ( suspect belt valves? )

With the heads of, I rotate the engine to align the crank timing, yet piston 1 is down

2 and 5 are up.

Just need confirmation this is correct

Keep in mind the belt snapped so I'm starting from scratch......

Last edited by Serviceman; May 12, 2024 at 02:07 AM. Reason: Add picture

May 14, 2024 | 01:00 AM

HunterD

Senior Member

Joined: Oct 2004

Posts: 2,044

From: Washington State

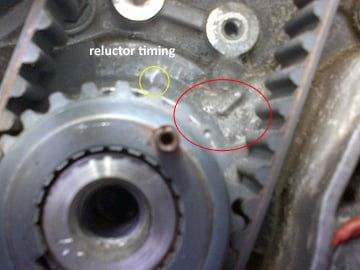

That is not the timing mark. If you remove the crankshaft pulley, you'll see the dot imprinted on the front of one of the teeth. That is the proper mark

Last edited by HunterD; May 14, 2024 at 01:07 AM.

May 14, 2024 | 01:20 AM

Serviceman

Thread Starter

Junior Member

Joined: May 2024

Posts: 2

Thanks for the reply.

Quote:

Originally Posted by HunterD

That is not the timing mark. If you remove the crankshaft pulley, you'll see the dot imprinted on the front of one of the teeth. That is the proper mark

glad u pointed this out. Appreciate the reply.
