I upgraded already, it was almost plug and play, I had to modify the USB cable so the Apple Carplay phone stays in the glove compartment, I can still use the original USB outlet on the centre console however it is considered USB by the head unit and if I put something there I lose the audio on the phone I use for Apple carplay. I still cant make the mic work, hoping you have better luck than I am.
i will just buy a DAB/DAB+ antenna with fakra connection to make it simple.
please tell me if you were able to make your mic work. Thanks.
i will just buy a DAB/DAB+ antenna with fakra connection to make it simple.
please tell me if you were able to make your mic work. Thanks.
Thanks in advance
Junior Member
Joined: Oct 2021
Posts: 3
Oooh could you send me a link to the post? I think I found the group.
Junior Member
Joined: Apr 2014
Posts: 16
Waiting for this cable to arrive. It has the same connectors but not really sure if compatible.
AU $42.96 | CABLE,USB，eclipse cross SDA 2 PORT HSL HIGH SPEED LINK, ECLIPSECROSS GK0W
https://a.aliexpress.com/_mtED4Oy
AU $42.96 | CABLE,USB，eclipse cross SDA 2 PORT HSL HIGH SPEED LINK, ECLIPSECROSS GK0W
https://a.aliexpress.com/_mtED4Oy
Junior Member
Joined: Apr 2014
Posts: 16
Waiting for this cable to arrive. It has the same connectors but not really sure if compatible.
AU $42.96 | CABLE,USB，eclipse cross SDA 2 PORT HSL HIGH SPEED LINK, ECLIPSECROSS GK0W
https://a.aliexpress.com/_mtED4Oy
AU $42.96 | CABLE,USB，eclipse cross SDA 2 PORT HSL HIGH SPEED LINK, ECLIPSECROSS GK0W
https://a.aliexpress.com/_mtED4Oy

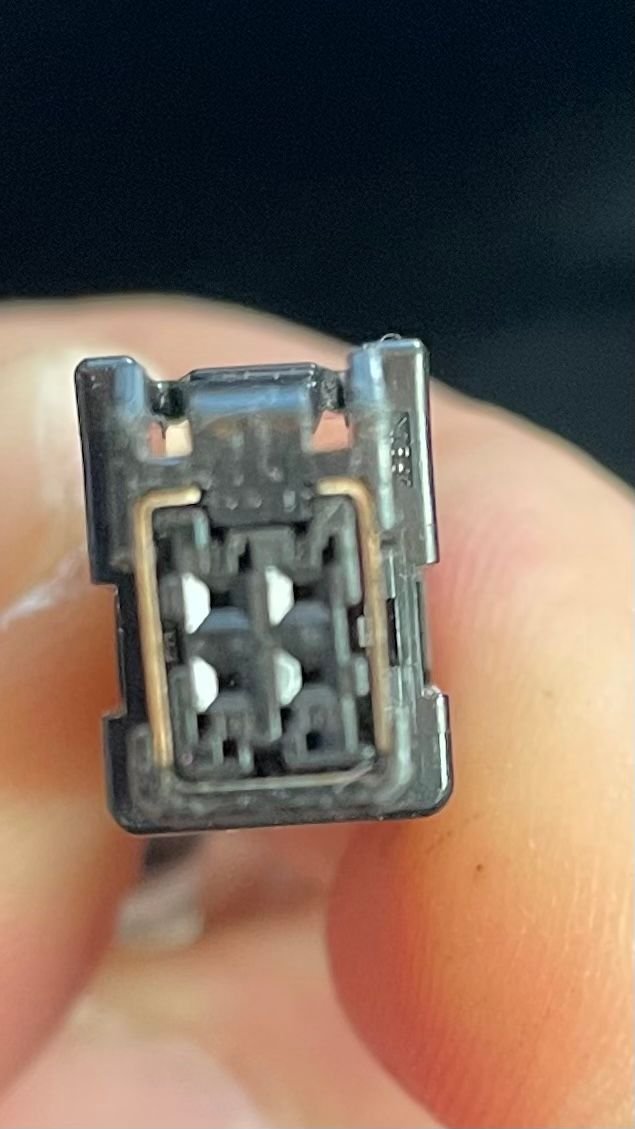

This is the original connector

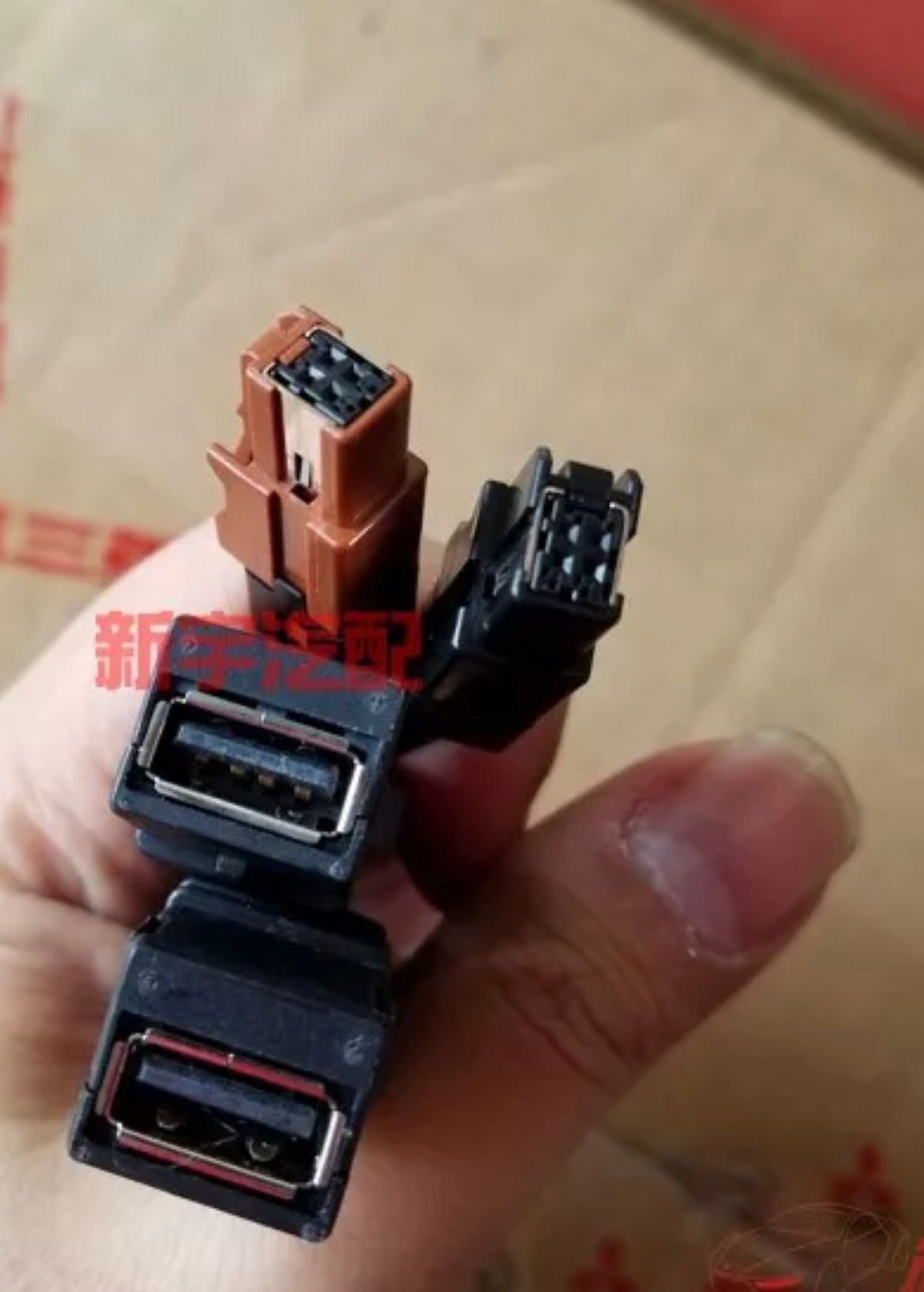

This is what I am waiting for right now.
Junior Member
Joined: Jan 2022
Posts: 1
No HFM?
Hey guys,
New member here from Australia. I was just installing the SDA unit in my 2014 ASX which had the MMCS in it. Needless to say, I needed help making the mic work. However, going through these forums and tons of wiring pinouts, I realised the wires I need are meant to be out of the HFM and quite conveniently, it turns out my asx has no HFM. Is that even possible? Considering the bluetooth hands free has been working fine but all I got is a 20 pin and an 18 pin connector. Thanks!
UPDATE: Sorry, I do infact have the HFM, turns out in the ASX it is actually hidden a bit lower behind the aircon controls so I couldnt see it earlier. All sorted now. I have a fully operational SDA unit. Yay!
New member here from Australia. I was just installing the SDA unit in my 2014 ASX which had the MMCS in it. Needless to say, I needed help making the mic work. However, going through these forums and tons of wiring pinouts, I realised the wires I need are meant to be out of the HFM and quite conveniently, it turns out my asx has no HFM. Is that even possible? Considering the bluetooth hands free has been working fine but all I got is a 20 pin and an 18 pin connector. Thanks!
UPDATE: Sorry, I do infact have the HFM, turns out in the ASX it is actually hidden a bit lower behind the aircon controls so I couldnt see it earlier. All sorted now. I have a fully operational SDA unit. Yay!
Last edited by babbancarter; Jan 3, 2022 at 05:41 AM.
Junior Member
Joined: Apr 2014
Posts: 16
I can confirm that these cables work, I used it with an iPhone 12 pro amd used Apple Car Play and it worked on both cables.
Junior Member
Joined: Feb 2022
Posts: 1
Great Video - one question
Mrjono,
What a great video, I'm just starting the swap from an MMCS to an SDA in a 2014 Outlander PHEV.
One question, what did you use to get the 3 pins out of the connector on the HFU so that you could reuse them. I've seen these connectors before where you use a tool to depress the latch on each pin so that you can pull the connector out but I've been unsuccessful so far.
Other than that, great help and many thanks for taking the time to post the video.
Cheers
Dave
What a great video, I'm just starting the swap from an MMCS to an SDA in a 2014 Outlander PHEV.
One question, what did you use to get the 3 pins out of the connector on the HFU so that you could reuse them. I've seen these connectors before where you use a tool to depress the latch on each pin so that you can pull the connector out but I've been unsuccessful so far.
Other than that, great help and many thanks for taking the time to post the video.
Cheers
Dave
Junior Member
Joined: Apr 2022
Posts: 4
Steering wheel tuner controls
I have just done this conversion. I have a problem that the my tuner steering wheel controls searches for channels, rather than going to the next programmed channel. Is anyone able to sort that out?
Junior Member
Joined: Jun 2022
Posts: 2
I recently completed the swap on a 2017MY outlander, although it had the hands free module the existing MMCS unit had the grey mic plug so I didn’t have to re-wire it.
I did however order the grey mic plug in preparation, if anyone needs one rather than using hot glue this is the correct plug.
https://a.aliexpress.com/_vnLxgq
The gps antenna (grey plug) can be made to fit without pulling it apart by simply removing the ridge on the top right of the plug.
I also used the following adaptor to plug the existing usb socket into the SDA. The pins needed moving round but that wasn’t hard.
https://a.aliexpress.com/_uWUf4W
if your ordering the adaptor then a DAB extension can be purchased from the same seller for much less than Amazon.
https://a.aliexpress.com/_vB92qq
Hopefully these links help anyone else wanting to move from the MMCS to SDA.
I did however order the grey mic plug in preparation, if anyone needs one rather than using hot glue this is the correct plug.
https://a.aliexpress.com/_vnLxgq
The gps antenna (grey plug) can be made to fit without pulling it apart by simply removing the ridge on the top right of the plug.
I also used the following adaptor to plug the existing usb socket into the SDA. The pins needed moving round but that wasn’t hard.
https://a.aliexpress.com/_uWUf4W
if your ordering the adaptor then a DAB extension can be purchased from the same seller for much less than Amazon.
https://a.aliexpress.com/_vB92qq
Hopefully these links help anyone else wanting to move from the MMCS to SDA.
