For the life of me I can't get it working. I have all the plugs and wired up and ...not working. I expect it is an grounding problem. From the grey 16 pin, does pin 57 need to go back to the 28 pin behind the glovebox, or can I ground it on the screw holding the headunit in place?

I am sure I have mic + and mic -.

I'm just confused about pin 56 and 57 on the 16 pin and whether they should go back to the 28 pin and if so where.

please help



Greetings. I don’t know if I addressed this topic correctly, but I see a lot of experts and useful information here.
The essence of the question is this - the head unit was stolen from my car. They stole it very roughly - they ripped out the connectors that connected to the head unit, only a lot of wires remained. I bought the connectors, but now I don’t know how to connect the wires to the connectors, since there are a lot of them ... Maybe you have a wiring diagram from my car brand (where the colors of the wires going to the head unit are indicated)?

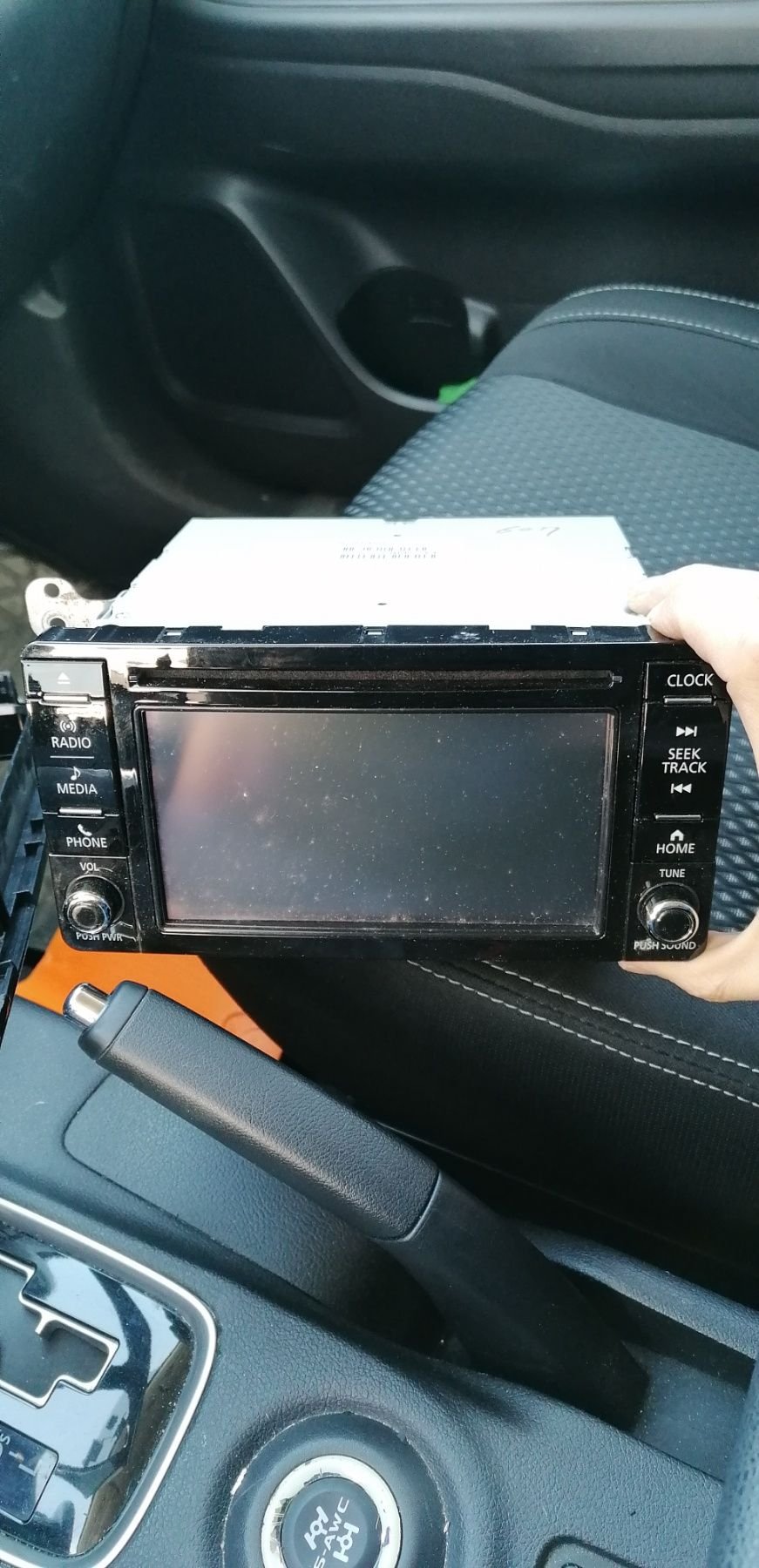

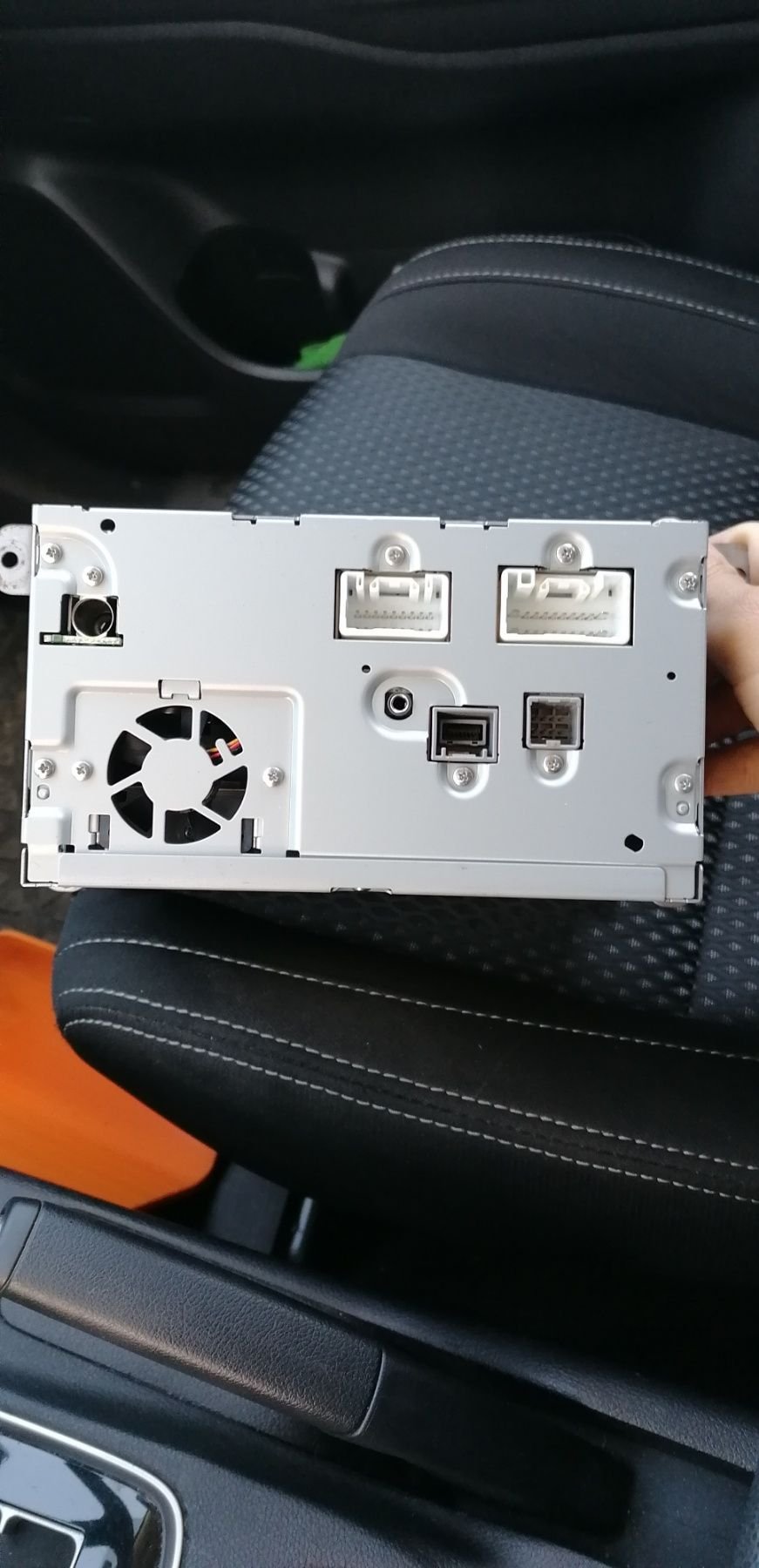

Mitsubishi Outlander 2016. Bought in America. I attach a photo of my former original head unit. Thank you in advance.



Hi all,
I am able to upgrade SDA for my 2016 Outlander SEL.
Have some research can be share
MMCS: 8701A692, SDA: 8741A006
When I switch MMCS to SDA, I got "The microphone has a bad connection" and "An error has occurred with the GPS antenna" two error code, plus no USB port for Apple Carplay.

SDA connection

Microphone solution: because I don't want to modify/cut original harness therefore I pull a microphone unit from junkyard with very long wire on it. (Cost $5)

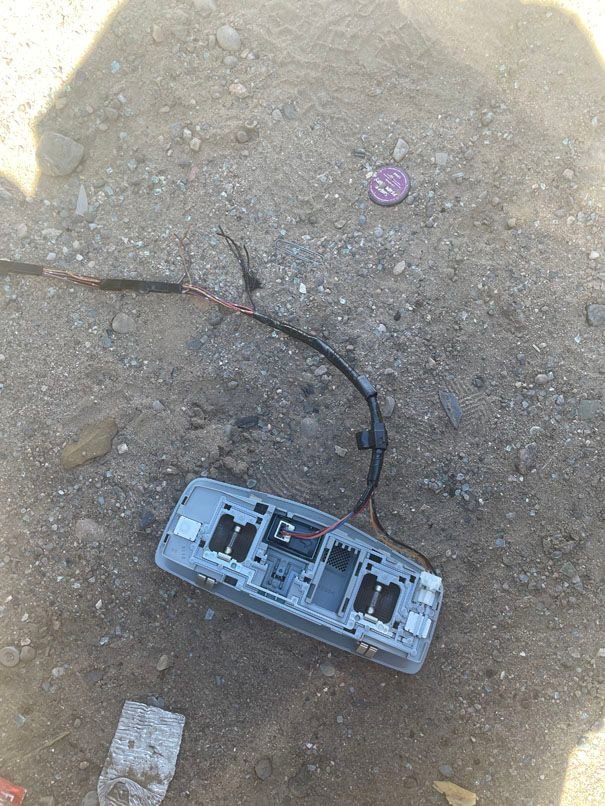

microphone with harness

Material: 8755A104 Harness, Microphone Circ; 8761A002 Microphone, Interphone
The ground wire contains inside the microphone OEM harness

Microphone connection
The microphone stick near push to start button

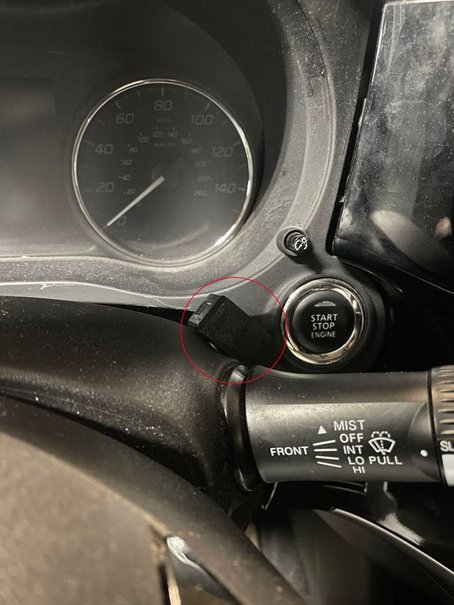

Microphone location

GPS antenna
Lancer Outlander Pajero Clarion Antenna,navigation Gps Antenna - Aerials - AliExpress

USB connection
Usb Adapter Cable,2 Port Hsl High Speed Link, Eclipsecross Gk0w - Battery Cables & Connectors - AliExpress
It's Mitsubishi China OEM parts, good quality

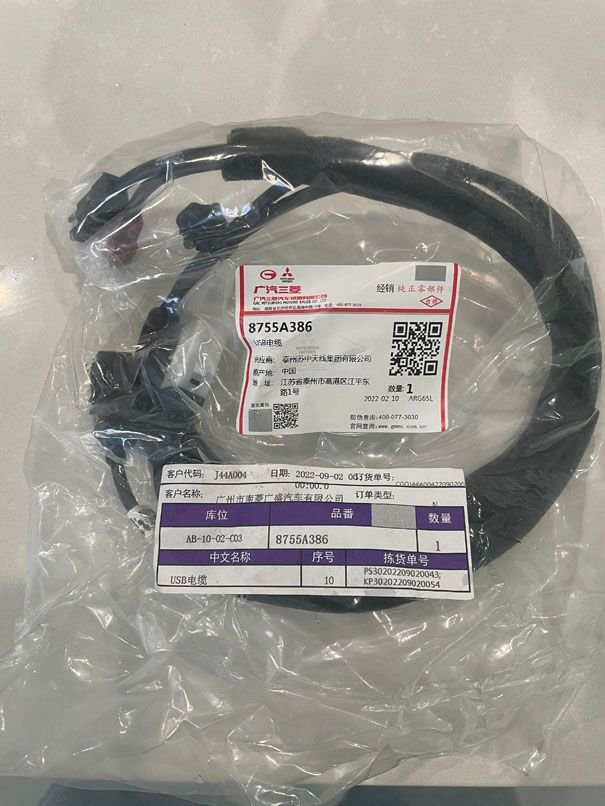

USB cable

Let me know if you have questions



Everyone done with mods?



Not yet



Hi Anyone know's what is the gray 16 pin adapter for with 4 wires outlander 2016. it's not mic wires?



Can you send the link?



Do the directions work for anyone?
