Ian · #**131** 09-10-2009, 07:53 PM

My cable is already plugded in that place.

What I whant to know it's where that cable is going in the vehicule, where the cable finish ?

This ad is not displayed to registered members.
Register your free account today and become a member on MitsubishiForum!

jsrd · #**132** 09-13-2009, 08:34 AM

0k Ian, look post 107&108 for diagrams to OEM rear camera, the other end finalizes in the D-38 connector.

Ian · #**133** 09-13-2009, 05:29 PM

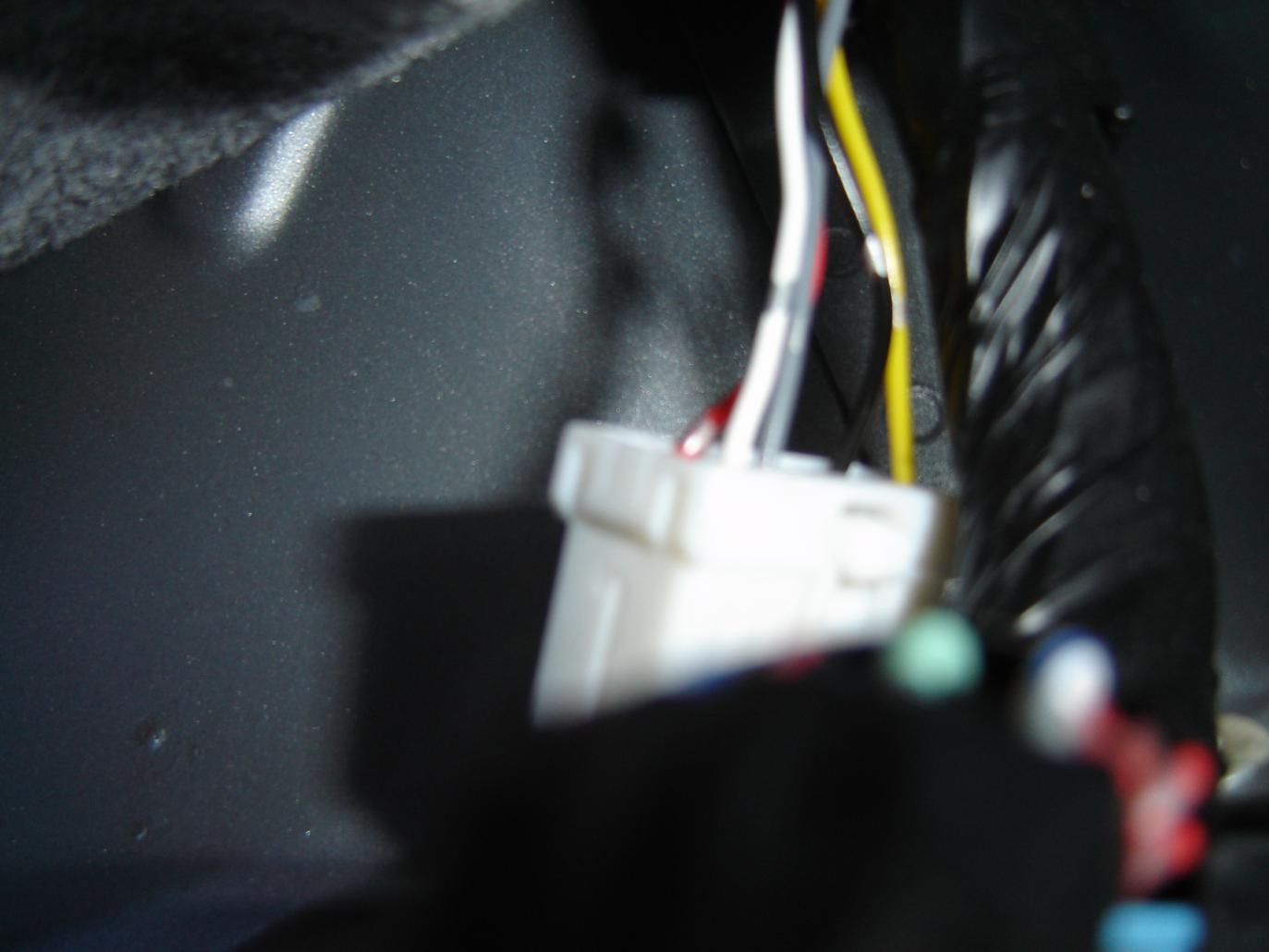

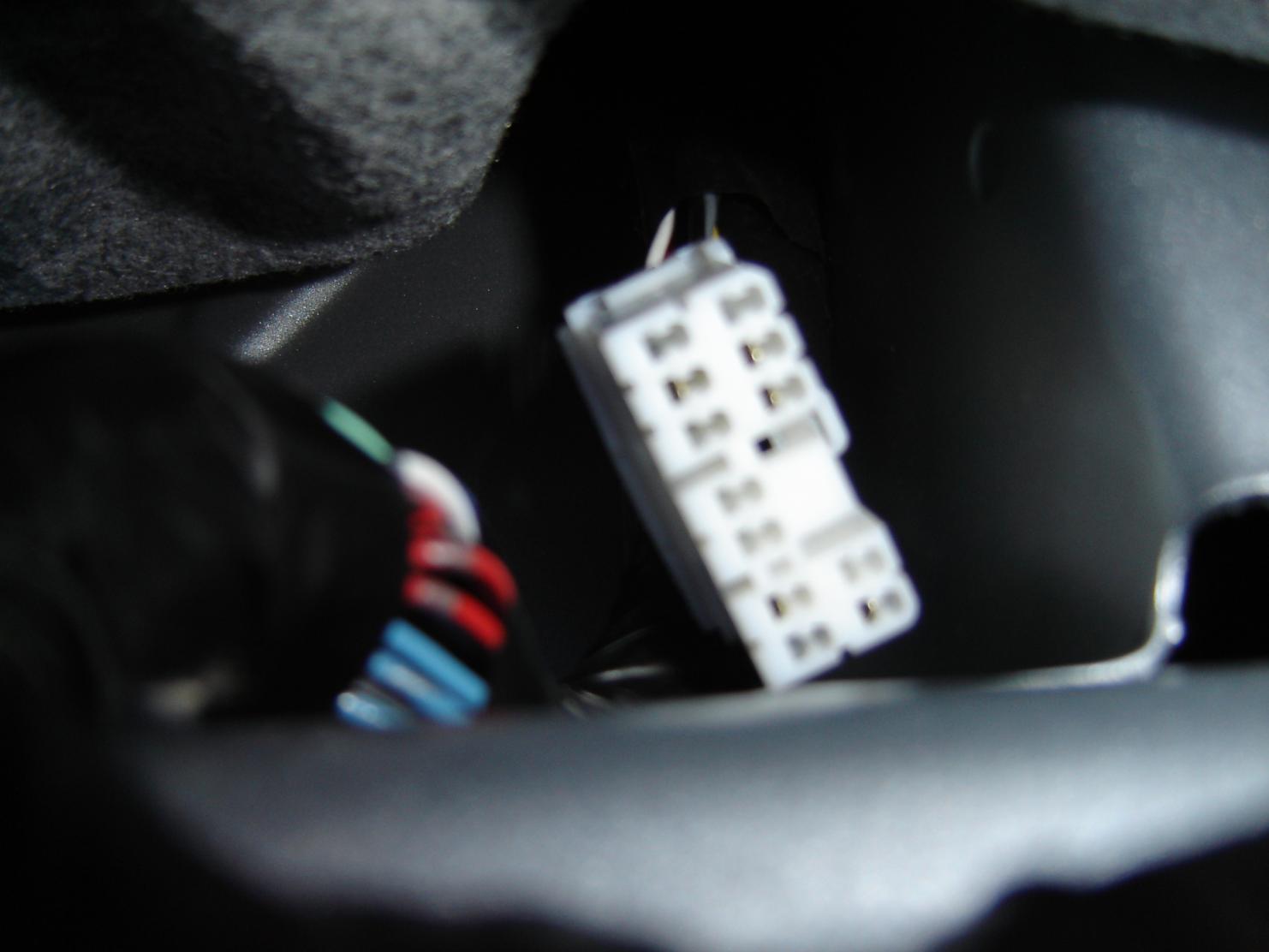

The D-38 connector is under the passenger seat.

It's a 12-pin connector
The hardness Parts # MZ607384EZ connect directly on the rear of MMCS, it does not use this connector.

jsrd · #**134** 09-14-2009, 09:10 AM

Sorry, my mistake. According to the mitsupartsman's diagram, F-21 is the other end, that according to which mentions mitsupartsman in post 108, will have to be in back door. My Outie doesn't have this prewiring, at this point I don't can to see by F-21 connector, but I have the 'F' diagrams, I will check it.

draeger · #**135** 11-03-2009, 05:55 PM

How do you remove the inside panel? I couldn't see any clips around.
